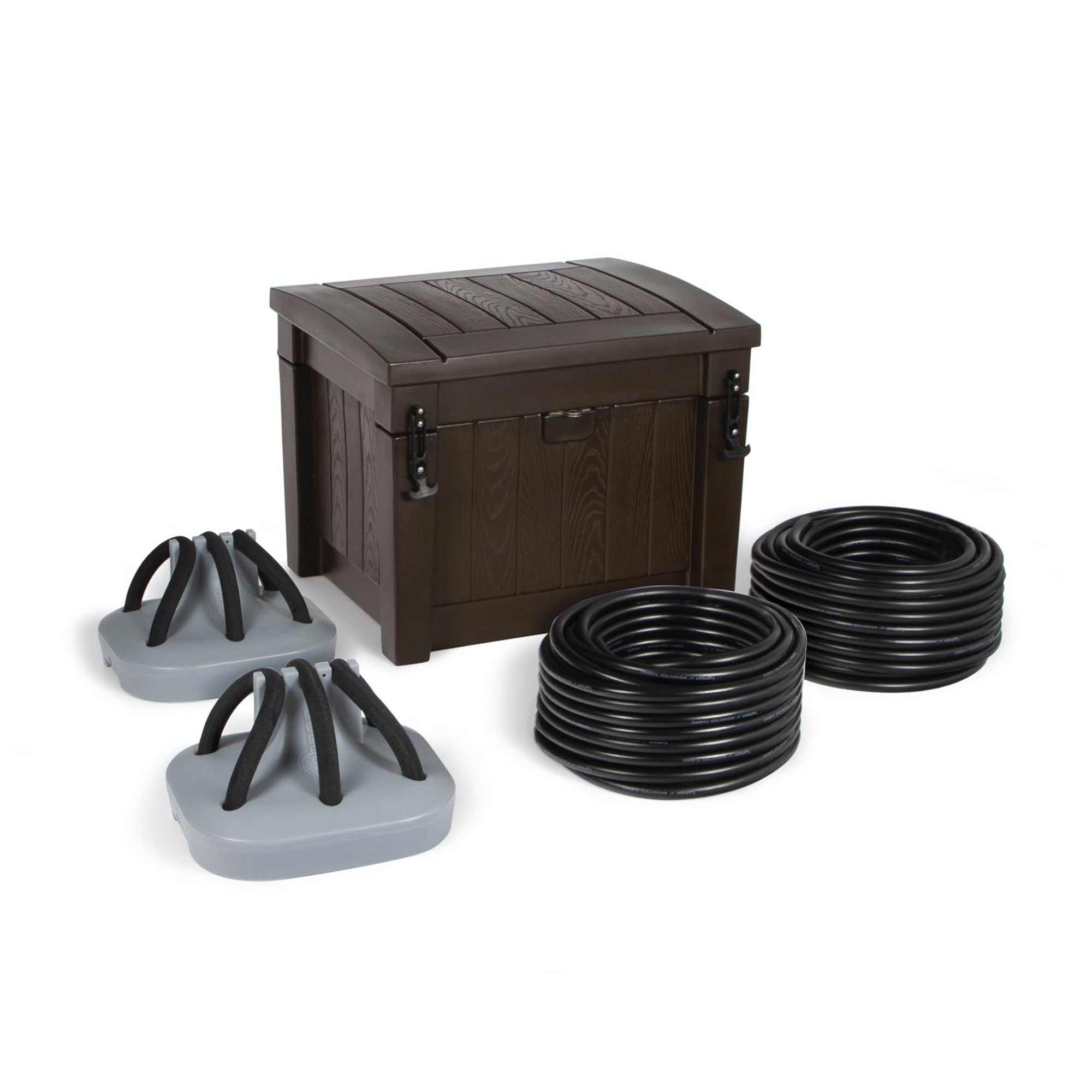

Shallow Water Aeration System: Brown aeration system cabinet, two grey weighted bases, and two spools of black aeration tubing.

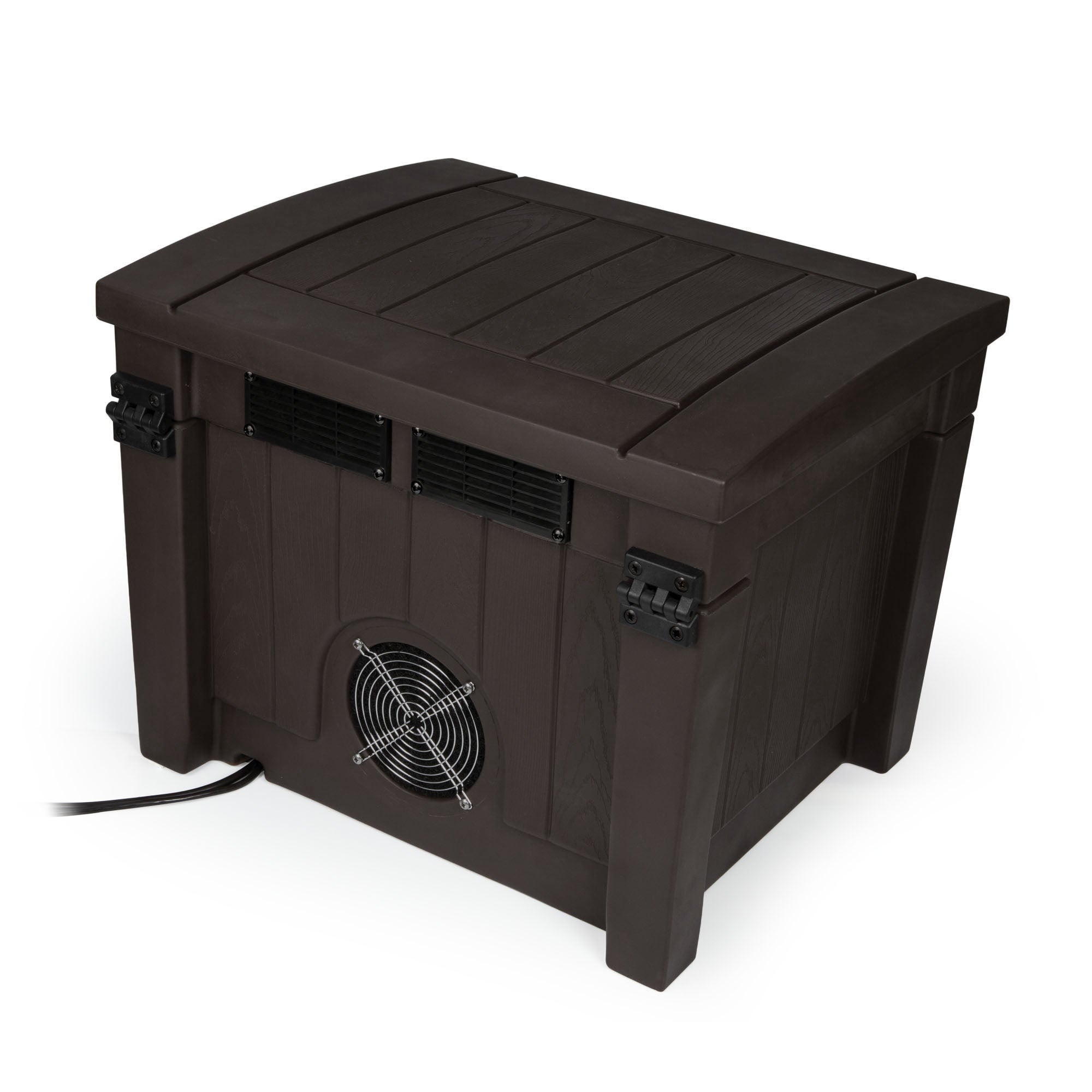

Dark brown plastic aeration system with a fan and vents, for pond or water feature.

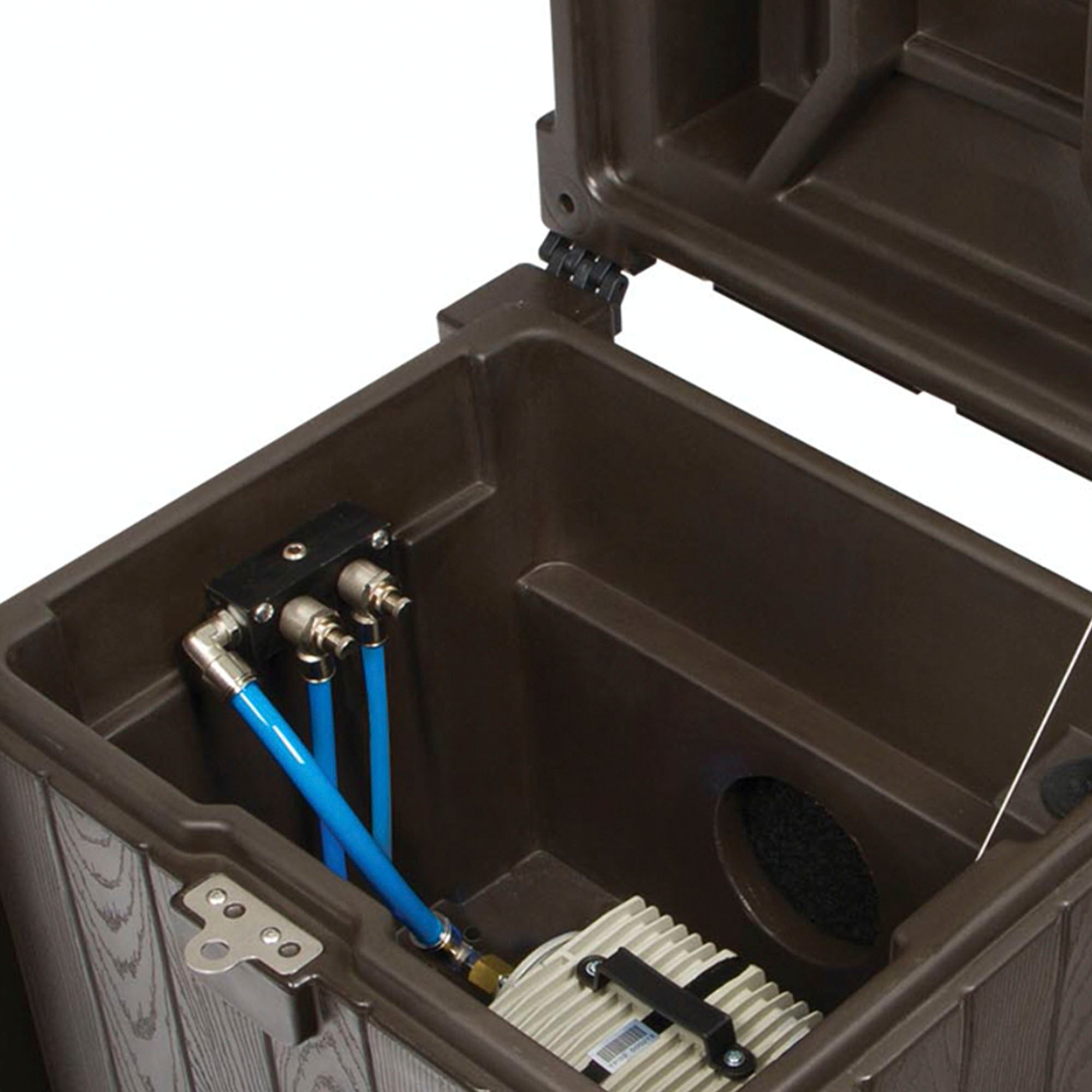

Brown plastic aeration system enclosure, open to reveal internal components and blue air lines.

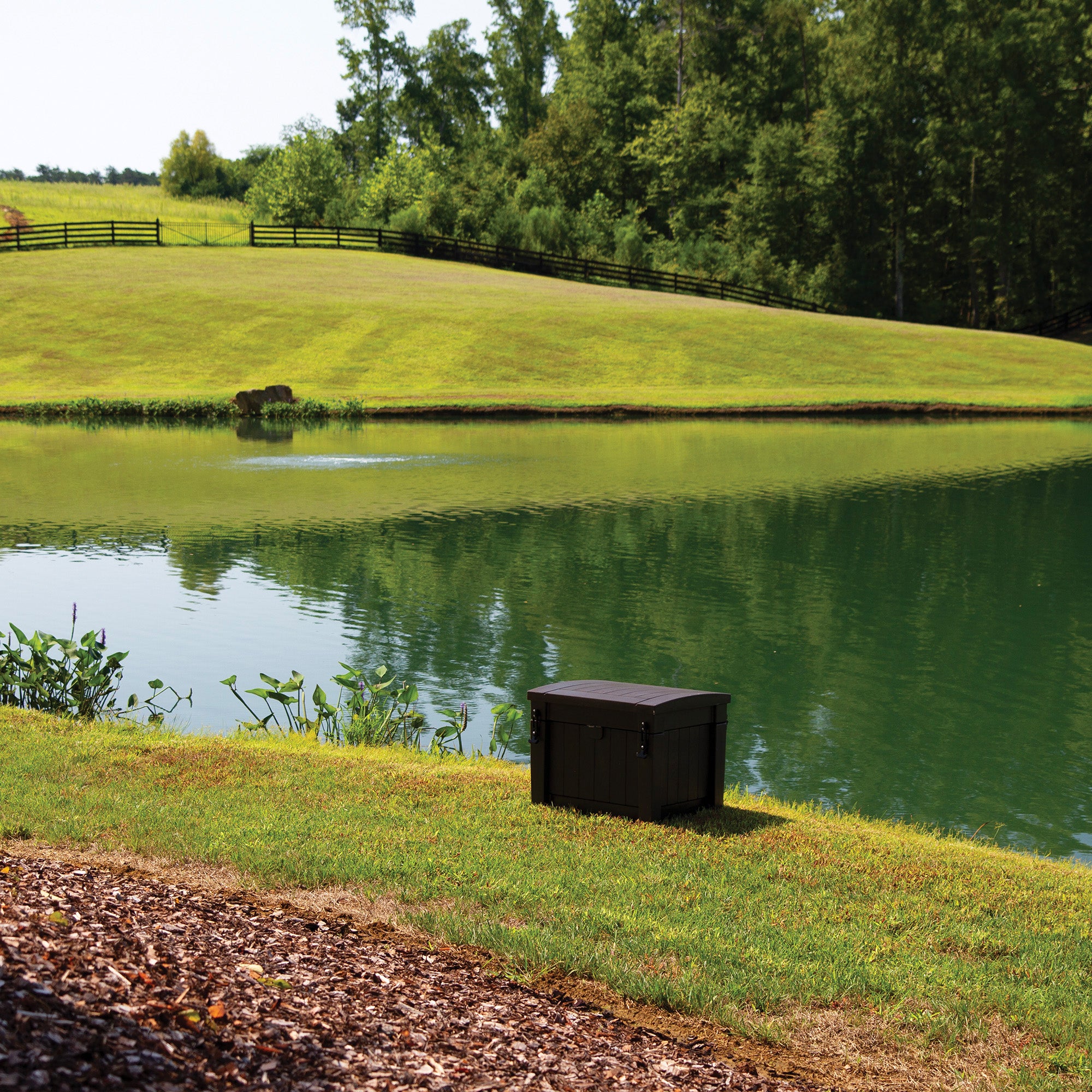

Dark brown aeration system housing by a pond, nestled in a grassy landscape.

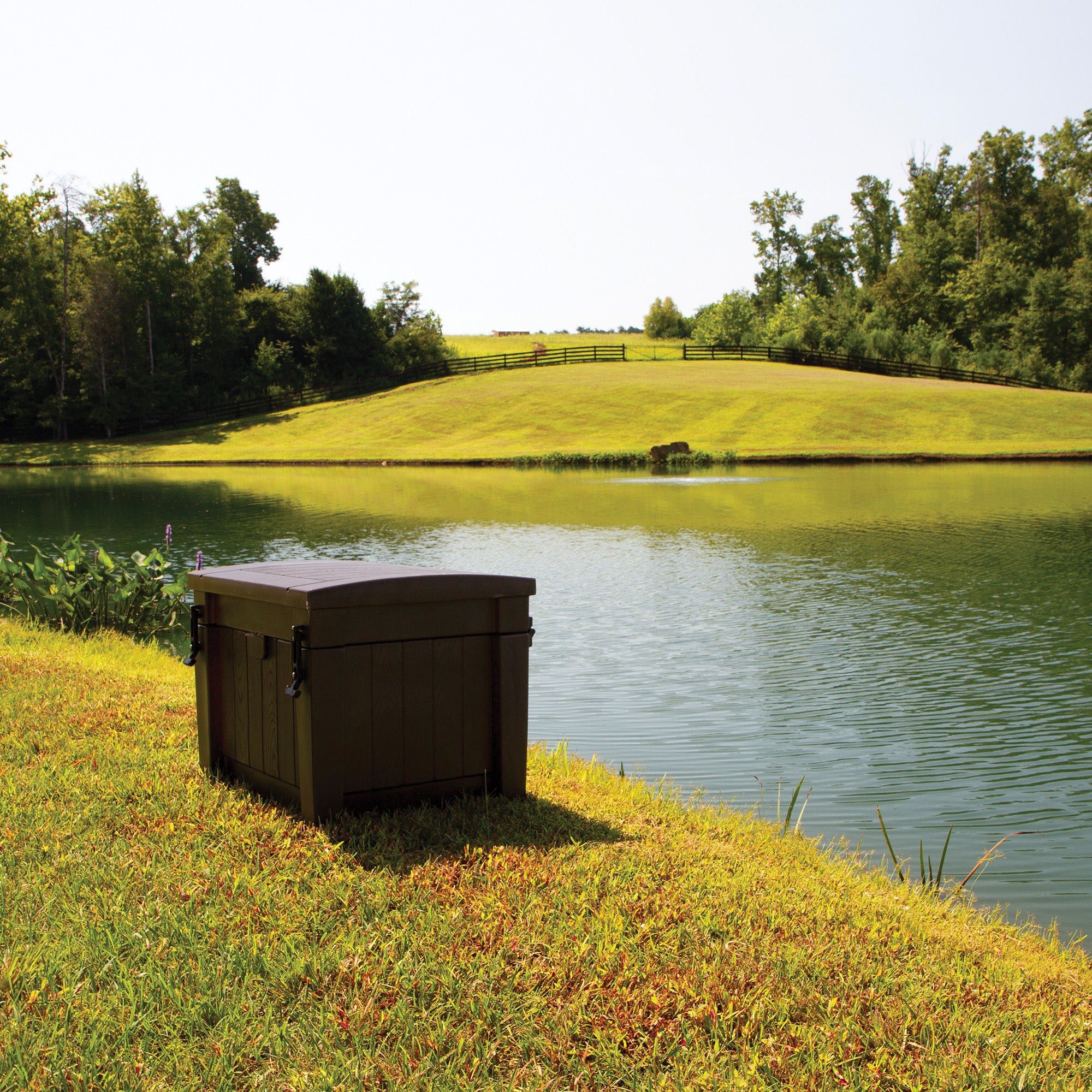

Dark brown aeration system unit by a pond, idyllic rural setting.

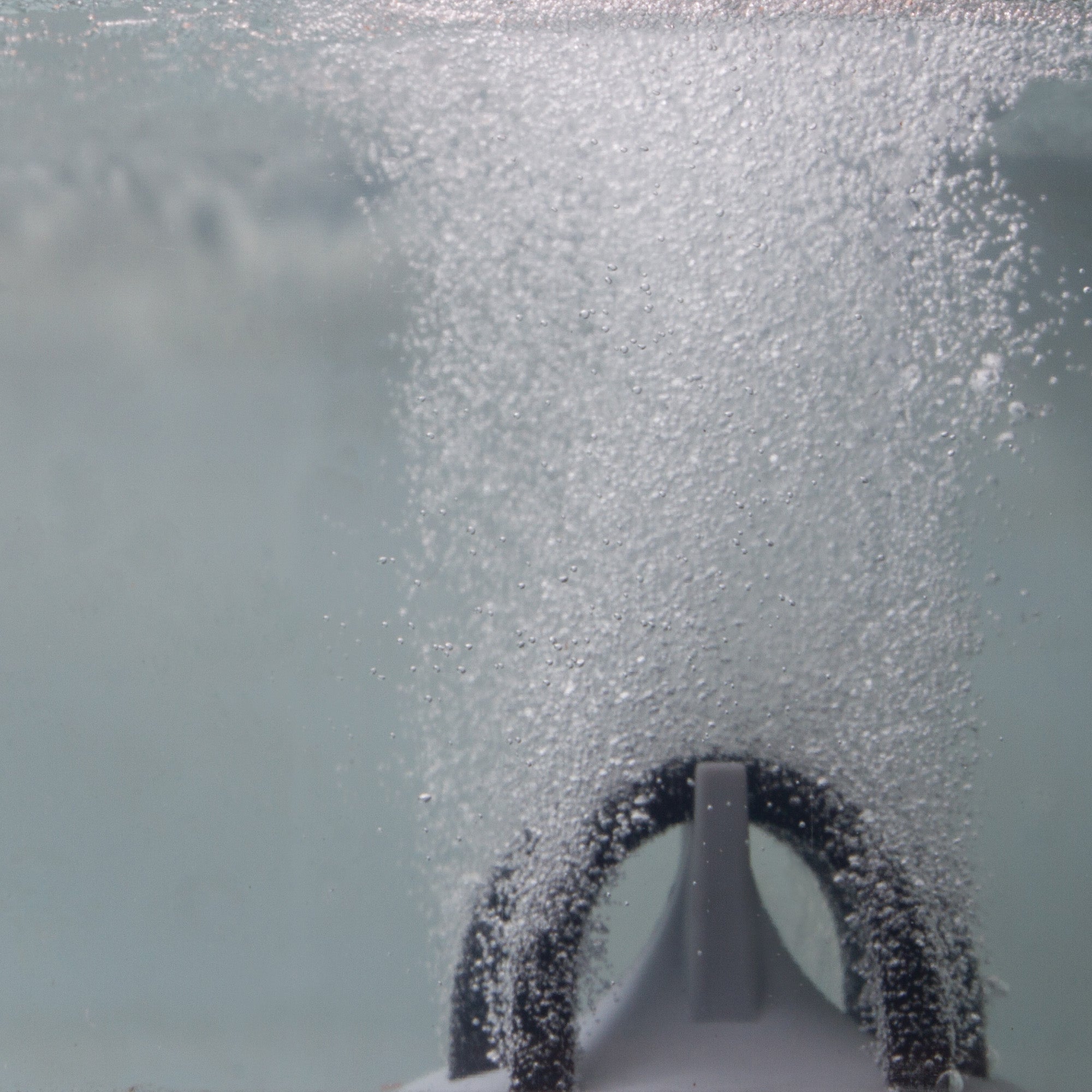

Close-up of aeration system releasing tiny bubbles into water.

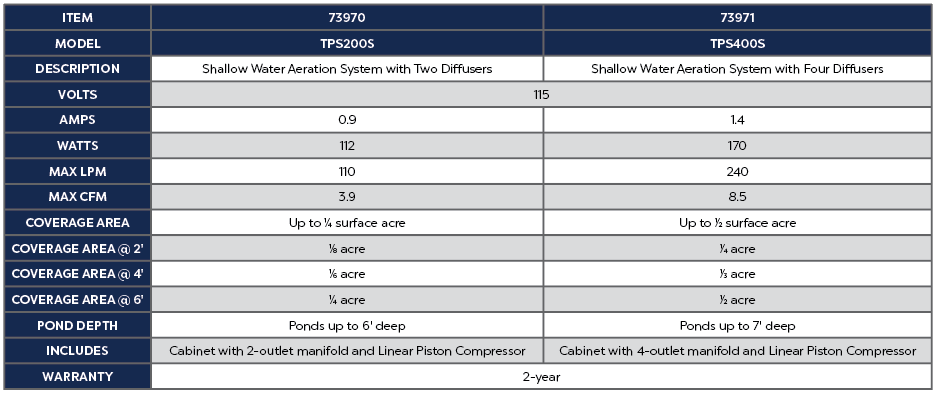

Detailed specs for shallow water aeration systems; coverage area, pond depth, and compressor details shown.

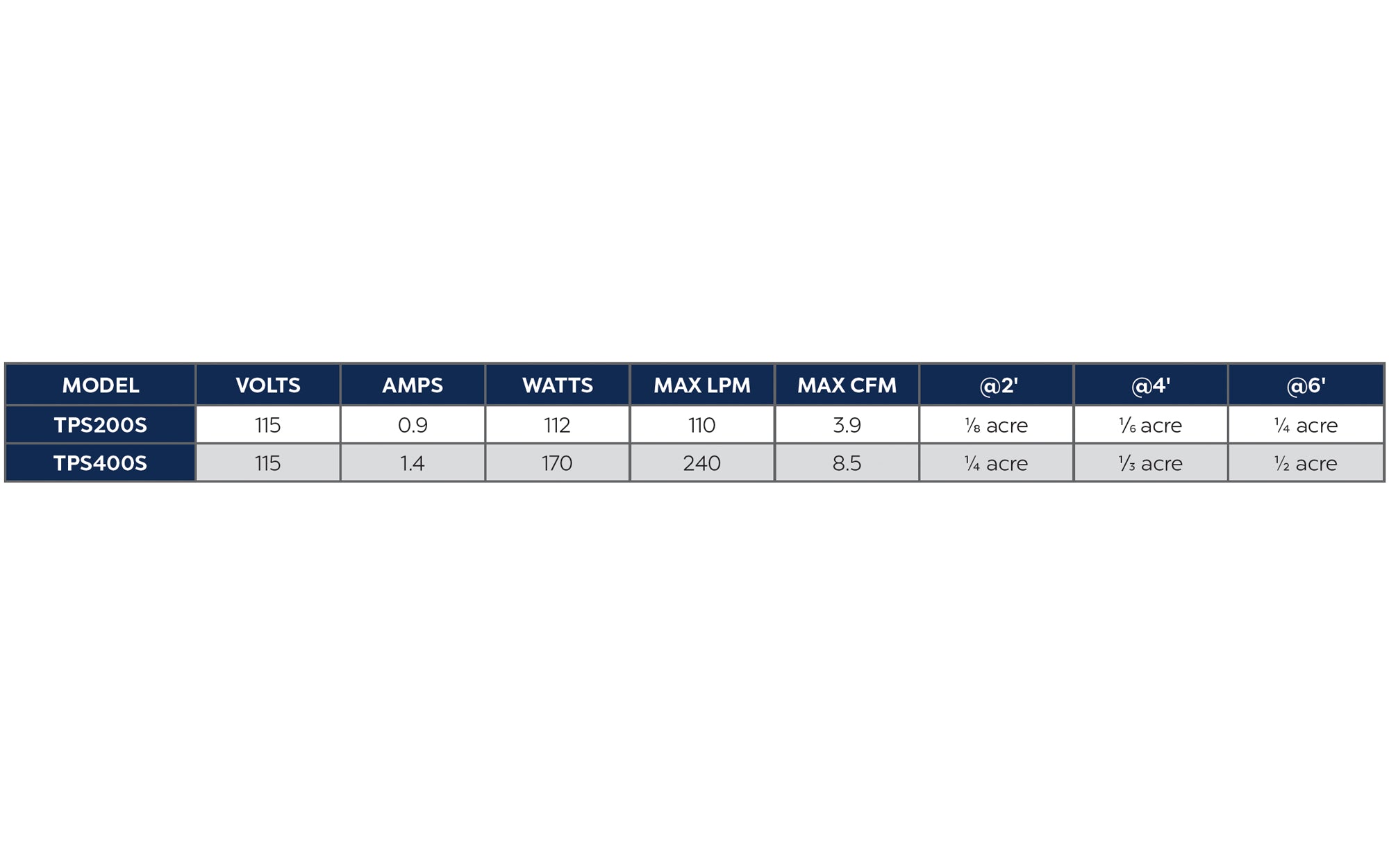

Table detailing shallow water aeration system specs: voltage, amperage, wattage, liters per minute, cubic feet per minute, and coverage area.
Shallow Water Aeration System: Brown aeration system cabinet, two grey weighted bases, and two spools of black aeration tubing.
Dark brown plastic aeration system with a fan and vents, for pond or water feature.
Brown plastic aeration system enclosure, open to reveal internal components and blue air lines.
Dark brown aeration system housing by a pond, nestled in a grassy landscape.
Dark brown aeration system unit by a pond, idyllic rural setting.
Close-up of aeration system releasing tiny bubbles into water.
Detailed specs for shallow water aeration systems; coverage area, pond depth, and compressor details shown.
Table detailing shallow water aeration system specs: voltage, amperage, wattage, liters per minute, cubic feet per minute, and coverage area.

Shallow Water Aeration Systems

$1,709.00 USD

Availability varies — contact us to place an order.

Request a Custom Order

Need it sooner? Call us (970) 945-2568

Atlantic’s Shallow Water Aeration systems combine all of the components you need to aerate ponds and lakes up to 7’ deep and a half acre in surface area. The complete Shallow Water Aeration systems include Aeration Cabinet Assemblies with all subcomponents pre-installed, Shallow Water Diffusers, Weighted Tubing and all the necessary fittings. The TPS200S is a Shallow Water Aeration System with Two Diffusers. It’s best used in ponds and lakes up to 6’ deep and can cover up to 0.25” surface area. It has a 2-year warranty and includes a TPS200C Cabinet Assembly, (2) TPT38100 Weighted Tubing and (2) TPSDIF Shallow Water Diffusers.
  • Shallow Water Aeration systems combine all of the components you need to aerate ponds and lakes up to 7' deep and a half acre in surface area
  • Complete systems include Aeration Cabinet Assemblies with all subcomponents pre-installed, Shallow Water Diffusers, Weighted Tubing and all necessary fittings
  • Model: TPS200S
  • Item: 73970
  • Volts: 115
  • Amps: 0.9
  • Watts: 112
  • Max CFM: 3.9
  • Max LPM: 110
  • Coverage Area: Up to 0.25 surface acre
  • Coverage @2': 0.125 acre
  • Coverage @4': 0.166 acre
  • Coverage @6' : 0.25 acre
  • Pond Depth: Ponds up to 6' deep
  • Includes: Cabinet with 2-outlet manifold and Linear Piston Compressor
  • Warranty: 2-year

Brand: Atlantic Oase

Weight: 20 lb

SKU: TP200S
